Flush Valve 63mm

Enhance your drip irrigation performance with our durable flush valves 63mm, 75mm & 90mm—designed to clear debris instantly and ensure clog-free operations without interrupting water flow.

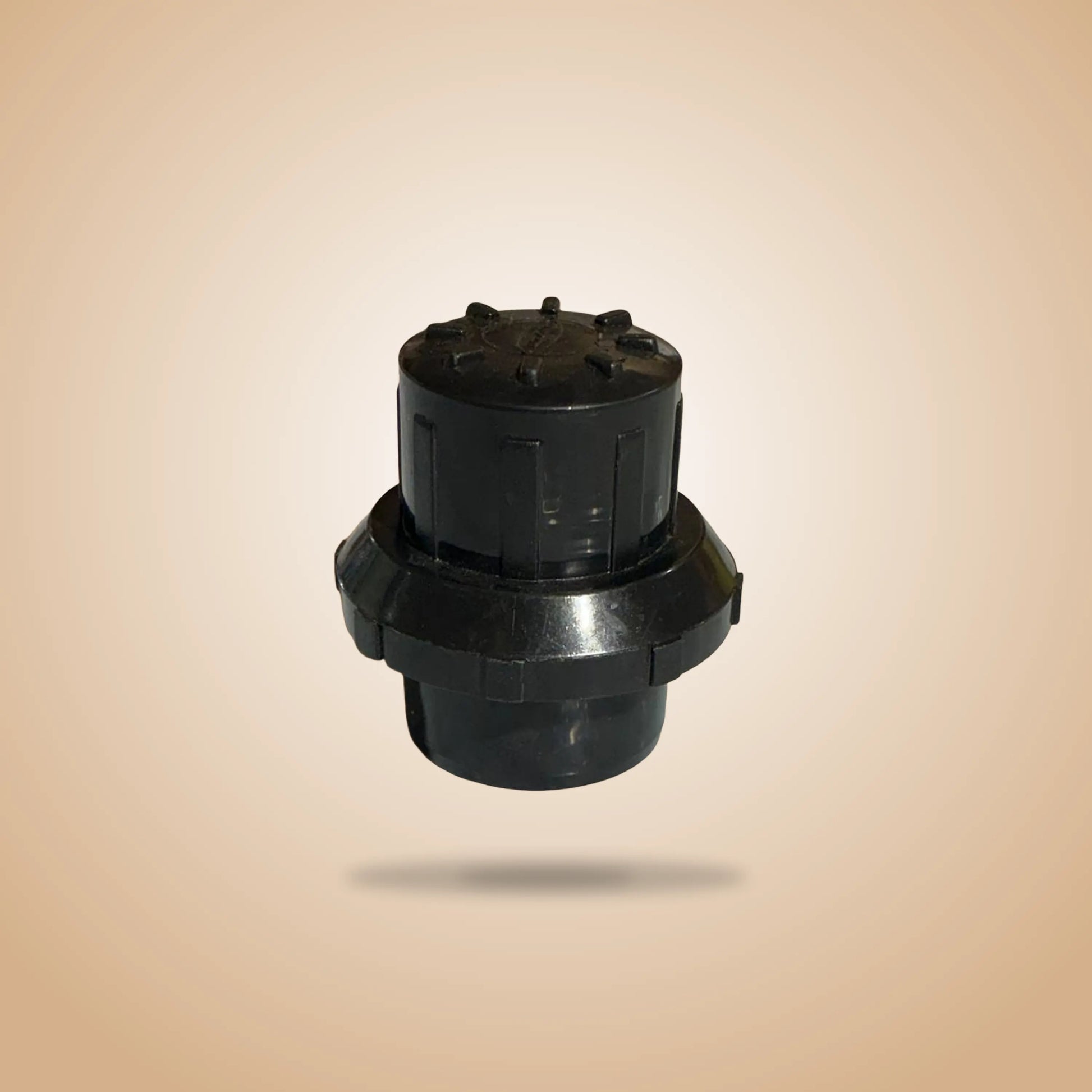

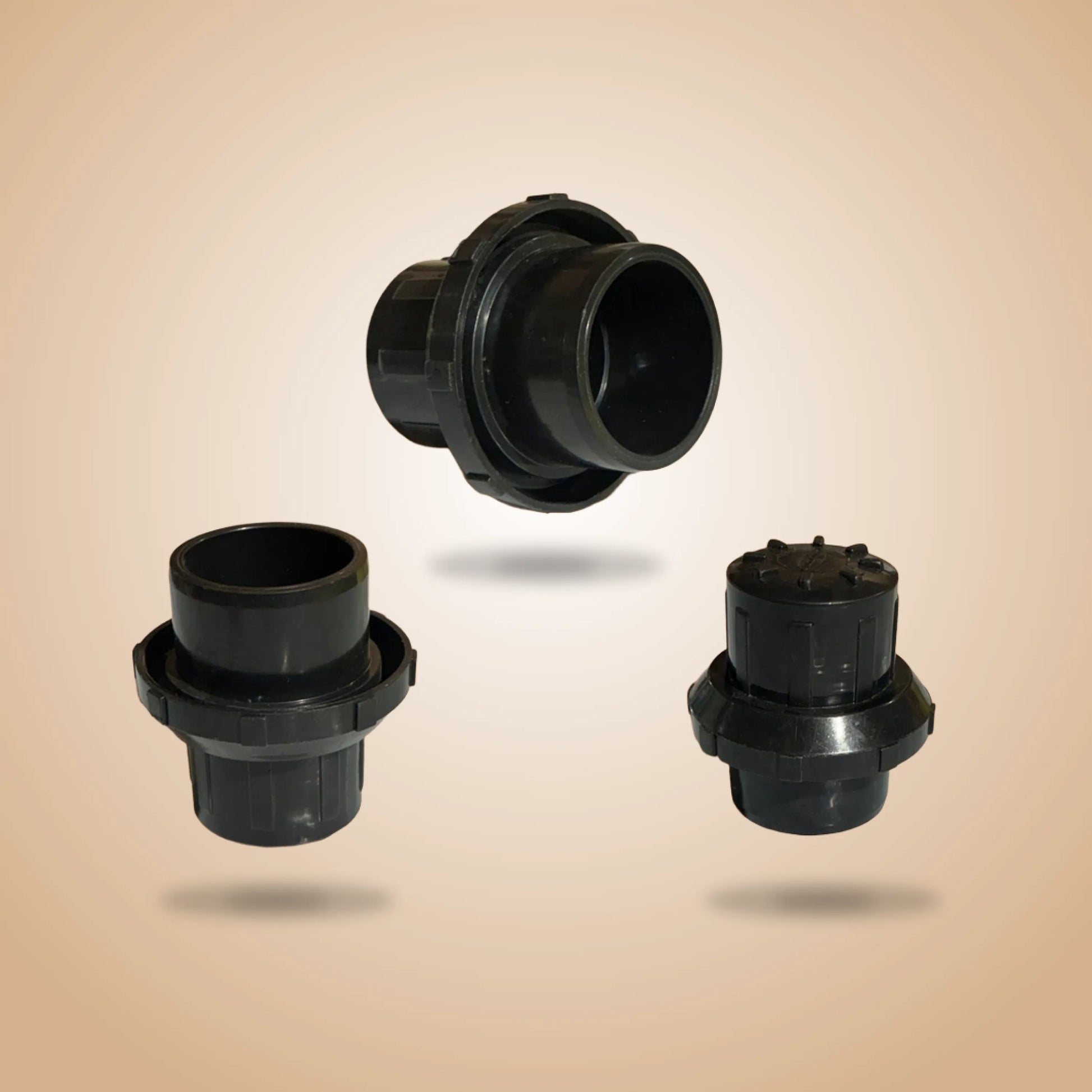

VK Dripshakti Flush Valve (available in 50mm, 63mm, 75mm, and 90 mm sizes) is built to rinse accumulated dirt, sediment, and debris from drip irrigation sub-mains. It features a threaded top for easy flushing and a stopper cap to prevent accidental dislodging during use.

Crafted from high-performance PP/ABS body with EPDM/O‑ring seals, these valves offer long life and leak-proof reliability

Ideal for both drip and micro-sprinkler systems, this valve opens at system shutdown or manually on-demand to purge water lines, preventing blockages and preserving system efficiency

Key Features & Benefits

Available in 50 mm / 63 mm / 75 mm / 90 mm diameters

Top-threaded opening and stopper cap for secure and effortless flushing

Constructed from chemical-resistant PP/ABS with EPDM ‘O’ ring seals for tight closure.

Operates under typical irrigation pressures (up to around 5 kg/cm² / ~4 bar)

Helps maintain line cleanliness, reduce emitter clogging, and extend irrigation system life.

Size Option : 50 mm, 63 mm, 75 mm, 90 mm

Material : PP / ABS plastic body, EPDM ‘O’‑ring

Max Pressure : Up to ~5 kg/cm² / ~4 bar

Special Features : Top-thread flush opening, cap stopper, threaded top design

Why Choose Our Flush Valve Kit

Simple to install in drip lines or sub-main pipelines

Flush debris quickly at shutdown or manually—no line disconnection

Improves emitter lifespan by reducing sediment buildup

UV-stabilized materials ensure season-long durability

Compatible across standard irrigation line sizes and fittings

Q: What is the purpose of a flush valve in a drip irrigation system?
A: A flush valve removes sediment, sand, and debris from the sub-main or lateral lines in a drip system. This helps prevent emitter clogging and maintains consistent water flow.

Q: How does the flush valve operate?
A: The valve typically opens when the irrigation system is turned off, allowing trapped sediment to exit. Some models can also be opened manually during operation for forced flushing.

Q: Is the flush valve compatible with high-pressure pumps?
A: Yes, these flush valves are built to withstand operating pressures up to around 4 to 5 kg/cm² (~58–72 PSI), which is suitable for most agricultural pumps.

Q: Can I install the valve on a slope or uneven terrain?
A: Yes, but for best performance, it should be installed at the lowest point of the irrigation line to ensure complete drainage during flushing.

Q: Which flush valve size should I use?
A: Match the flush valve size to your pipeline diameter. For example, use a 50 mm flush valve with a 50 mm sub-main pipe.

Q: How often should I flush my irrigation system?
A: It depends on water quality, but flushing is generally recommended once every 1–2 weeks or as indicated by pressure drops or emitter clogging.

Q: Is installation complicated?
A: No, installation is straightforward. Each valve comes with threaded or socket ends for direct connection to PVC or HDPE pipes using standard adapters.

Q: Can these valves be reused across seasons?
A: Yes, they are made from UV-resistant and durable materials (PP/ABS and EPDM) for multi-season use with proper maintenance.
